Learning the Language of API Data

On the road to becoming fluent with JSON Schema

The OpenAPI Specification is a language for expressing the design of an API. But contained within OpenAPI is another language: JSON Schema. Like OpenAPI, JSON Schema is defined by a standards specification (published at json-schema.org). You saw the tip of the JSON Schema iceberg in What Am I Getting Out of This?, but that wee bit of knowledge will only get you so far. Diving into JSON Schema and gaining fluency will require several API Design Matters articles—there is much to learn!

Welcome to the next article in the Language of API Design. Rather than jumping into the middle of this series, I encourage new subscribers/visitors start by reading Your Guide to The Language of API Design and scanning previous posts in the series.

OpenAPI uses JSON Schema to define and describe¹ all the data conveyed in an API operation:

• Request and response bodies

• Request and response header values

• Query parameter values

JSON Schema is really a domain specific language,
coded in JSON, for describing JSON data

When you include a JSON schema in an OpenAPI document for these purposes, you are doing two things:

1. JSON Schemas informs your API consumer how to structure the JSON data they pass to the API and how the API’s response data is structured—that is, the objects, arrays, and properties in the JSON document. This is using JSON Schema for modeling your APIs data. For example, many API providers also supply Software Development Kits (SDKs) for their APIs, and those SDKs contain data types, interfaces, or classes in the target language that represent translations of the schemas into that language’s programming constructs.

2. JSON Schemas define what is valid data for the API by defining constraints for the data such as regular expression patterns for strings, the minimum and maximum length of arrays, which properties of an object are required, etc. Many of these constraints do not have an equivalent representation in the data types, interfaces, or classes in the target language.

This duality was the topic of a talk I recorded for the 2020 API Specifications Conference, Wielding the Double-Edged Sword of JSON Schema.

Keep in mind that JSON Schema was originally designed (independently of OpenAPI Specification) as a JSON validation tool—that is, for the second purpose above. As an API designer, knowing how to properly constrain your API’s input can lead to increased security (as I’ll discuss in a future post dedicated to that.) However, your first need is likely leaning heavily in the modeling aspect. To be effective with that, you need to know the lingo:

• How JSON Schema expresses JSON validation

• How some of those same constructs are interpreted in order to express data modeling.

Let’s revisit some of the schemas we defined earlier—see What Am I Getting Out of This? for the JSON schema that describes the response from the getChainLinks operation. Here is that schema for reference. (I use YAML, but remember that this is just a more convenient and legible representation of a JSON value.)

components:
  schemas:
    chainLinks:
      title: Chain Links
      description: >-
        A page of chain link items from a
        collection of chain links.
      type: object
      properties:
        items:
          title: Chain Link Items
          description: A list of chain links in this page.
          type: array
          maxItems: 10000
          items:
            title: Chain Link Item
            description: >-
              A concise representation of a chain link item
              in a list of chain links.
            type: object
            properties:
              id:
                description: >-
                  This chain links unique resource identifier.
                type: string
                minLength: 4
                maxLength: 48
                pattern: ^[-_a-zA-Z0-9:+$]{4,48}$
              type:
                description: >-
                  Describes what type of chain link this is.
                type: string
              authorId:
                description: >-
                  The ID of the author who created this chain link.
                type: string
                minLength: 4
                maxLength: 48
                pattern: ^[-_a-zA-Z0-9:+$]{4,48}$
              createdAt:
                description: >-
                  The RFC 3339 `date-time`
                  when this chain link was created.
                type: string
                format: date-time

Let’s break this chainLinks schema down.

1. This schema is an object.²

   1. As an JSON object, the above chainLinks schema consists of a set of named values: title, description, type, properties. These names are called keywords. A keyword is part of the Ubiquitous Language of the JSON Schema domain, along with other terms described below. The core of JSON schema defines some keywords and what they mean

      1. Schemas are nested.

         1. Each property value within the properties object is another independent JSON schema that define the value of the named property.

            1. In this case, there is one property called items; it is defined with type: array and another keyword, items, that defines yet another schema for all items in the array.³

               1. Similarly, the values of the id, type, authorId, and createdAt properties are JSON schemas that define those properties within an array item.

      2. In total, there are seven schemas nested four deep in those few lines of JSON Schema code. That is some great expressiveness!

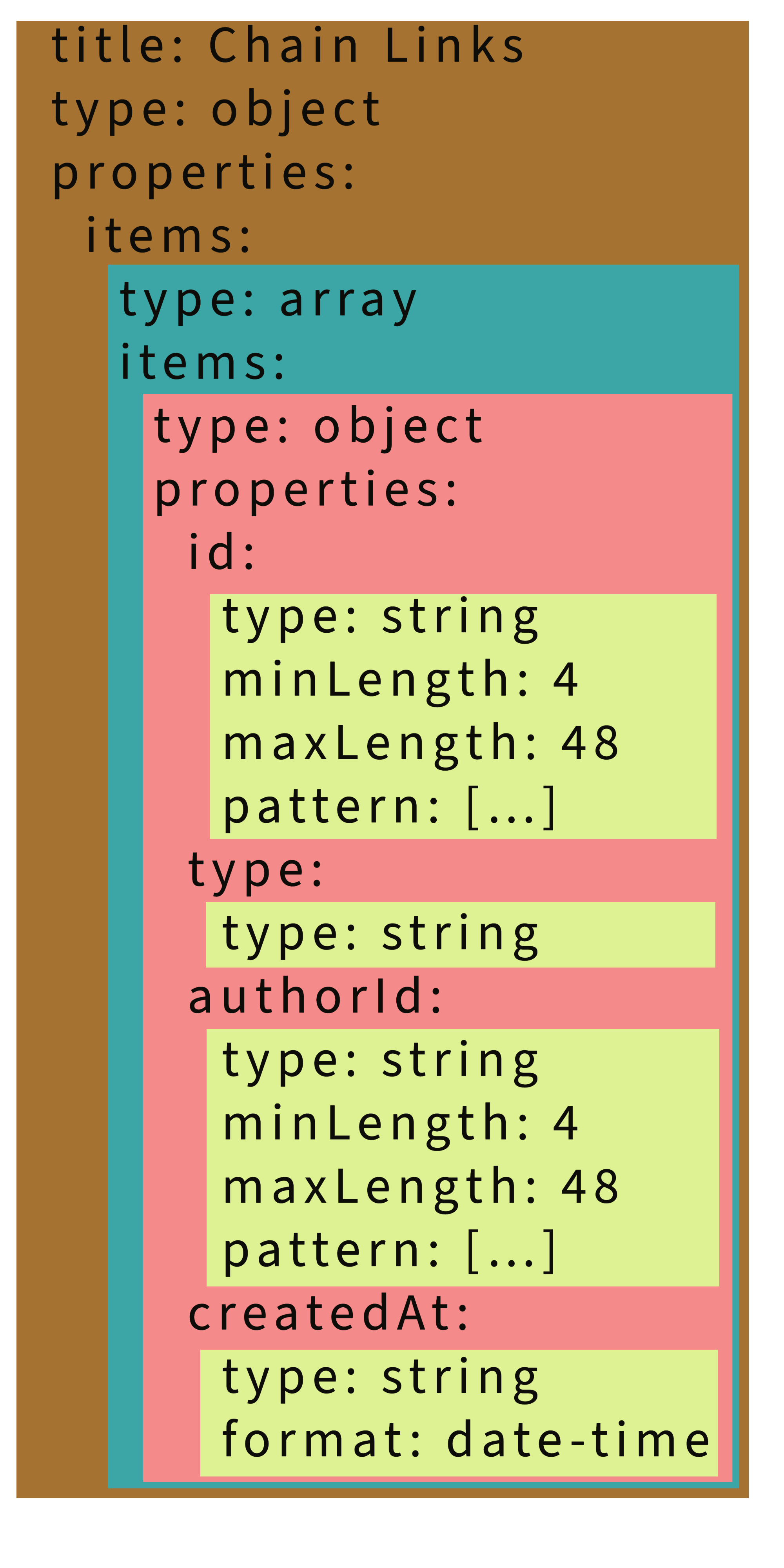

2. Here is the nested schema structure. This one JSON schema is really seven schemas in one—each colored box contains a schema.

The Very Model of a Modern Major General Purpose API Client

The OpenAPI specification (and the JSON Schema specification) do not overstep their responsibility of describing the API and its data. Specifically, they do not specify how one maps those API definitions into API client applications or API implementations in web services. That is left as an implementation choice for the tool providers. As I noted above, one must interpret the JSON schema when creating code artifacts.

To continue our discussion of using JSON Schema to model API data within an OpenAPI definition, let’s show how some OpenAPI tools perform that translation from JSON Schema into code constructs, such as a client Software Development Kits or SDKs.

A widely used tool is swagger-codegen (Open-Source Software supported by SmartBear.) Other options include an OSS fork of this called openapi-generator, and some commercial tools like APIMatic, Speakeasy, Fern and many more. If we use our current openapi.yaml file, we can run

swagger-codegen generate -l typescript-angular -i openapi.yaml -o ts

This generates a number of files, including ts/model/chainLinks.ts which holds the TypeScript interface for the chainLinks schema returned from the getChainLinks operation.

This has the very unsatisfying result shown below.

/**
 * A page of chain link items from a collection of chain links.
 */
export interface ChainLinks {
    /**
     * A list of chain links in this page
     */
    items?: Array<any>;
}

Photo by Andre Hunter on Unsplash

While this code defines a ChainLinks interface with an items property, it falls short of modeling the structure or interface of the elements of that array. We get similar results when we try other languages, such as Java

swagger-codegen generate -l java -i openapi.yaml -o java

The resulting ChainLinks.java source file is equally dissatisfying, with the declaration of the items array as:

private List<Object> items = null;

Photo by Jussara Paulo on Unsplash

We’ll show how to address that huge deficiency in code gen with some schema restructuring in a future post. (How is that for a cliffhanger?)

The Ubiquitous Language of JSON Schema

As a language geek (after all, I am writing a series titled The Language of APIs), I will close by pointing JSON Schema’s own terminology—the Ubiquitous Language of JSON Schema. The Conventions and Terminology section of the specification defines some of the terms of JSON Schema (emphasis mine)

JSON Schema uses keywords to assert constraints on JSON instances or annotate those instances with additional information. Additional keywords are used to apply assertions and annotations to more complex JSON data structures, or based on some sort of condition.

To facilitate re-use, keywords can be organized into vocabularies. A vocabulary consists of a list of keywords, together with their syntax and semantics. A dialect is defined as a set of vocabularies and their required support identified in a meta-schema.

Pardon me for going a bit meta here, but I like that JSON Schema uses the language of languages (words, vocabularies, dialects, syntax, and semantics) to describe itself.

1. Define: specify the type and shape of data, and any constraints such as minimum and maximum numeric values, minimum and maximum numeric values. Describe: provide prose descriptions of the data as documentation.

2. A schema may also be a boolean true or false. We’ll discuss the use of those later.

3. The apparent overloading of the identifier items here can be confusing but that’s not intentional. Each serves a different independent purpose which just happens to result in a lexically adjacent coincidence. The JSON Schema keyword items is an appropriate name for the schema that applies to the items in an array. The property name items in the chain link API arises from a choice to name arrays in collections uniformly as that collection’s items. Thus, the word “items” has two natural uses in an API definition because “items” is a very good choice for naming things within an array.
